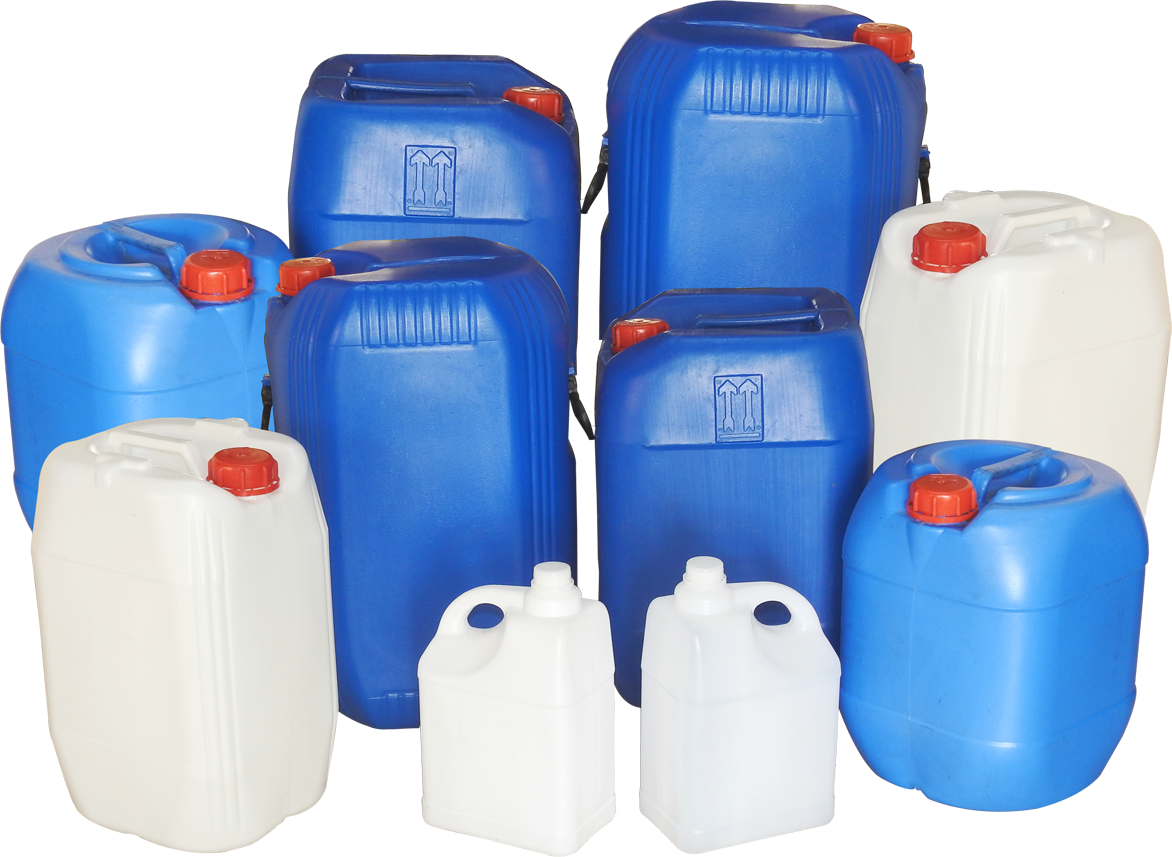

Narrow Mouth Jerry Cans

Features of Narrow Mouth Small / Medium Packaging Drums/Jerycans

  • International Design-Widely Accepted
  • Zero leakage sophisticated Screw Cap With cup insert
  • 100% drainable
  • Pilfer evident sealing arrangement
  • Re-Engineered packs for cost saving
  • Stackable design
  • Optimum space utilization-Side handle could be tucked in
  • Venting / Degasfication caps are available on demand
  • Designed for maximum usage of shipping Container
  • Large printing area for Aesthetic Marking
  • Long life, High resale Value

Features for Wide-Mouth Drums

  • Suitable for packing Liquid, Semi Solid & viscous Products
  • Wide Opening (5’’/135mm) For Quick filling and decanting
  • Economical alternate to open top drums
50 Liters (WM)

Specification:

Material HDPE
Height (± 2% mm) 535 mm
Length (± 2% mm) 390 mm
Width (± 2% mm) 390 mm
Mouth Opening (± 2% mm) 45 mm
Capacity (± 2% Ltr) 54 Ltr
Tare Weight (± 2%) 2.5 kg
50 Liters

Specification:

Material HDPE
Height (± 2% mm) 550 mm
Length (± 2% mm) 382 mm
Width (± 2% mm) 328 mm
Mouth Opening (± 2% mm) 45 mm
Capacity (± 2% Ltr) 50.5 Ltr
Tare Weight (± 2%) 2.2/2.5 kg
40 Liters

Specification:

Material HDPE
Height (± 2% mm) 485 mm
Length (± 2% mm) 330 mm
Width (± 2% mm) 320 mm
Mouth Opening (± 2% mm) 45 mm
Capacity (± 2% Ltr) 44 Ltr
Tare Weight (± 2%) 2.3/2.5 kg
20 Liters (S)

Specification:

Material HDPE
Height (± 2% mm) 425 mm
Length (± 2% mm) 278 mm
Width (± 2% mm) 242 mm
Mouth Opening (± 2% mm) 46 mm
Capacity (± 2% Ltr) 21.5 Ltr
Tare Weight (± 2%) 1.1/1.2 kg
20 Liters (R)

Specification:

Material HDPE
Height (± 2% mm) 360 mm
Length (± 2% mm) 282 mm
Width (± 2% mm) 278 mm
Mouth Opening (± 2% mm) 46 mm
Capacity (± 2% Ltr) 21.5 Ltr
Tare Weight (± 2%) 1.1/1.2 kg
5 Liters

Specification:

Material HDPE
Height (± 2% mm) 305 mm
Length (± 2% mm) 194 mm
Width (± 2% mm) 132 mm
Mouth Opening (± 2% mm) 30 mm
Capacity (± 2% Ltr) 5.6 Ltr
Tare Weight (± 2%) 250/320 gm
